PCI > MCS9805
General Description
The MCS9805 is a printer port controller with PCI bus interface.
MCS9805 fully supports the existing Centronics printer interface as well as PS/2, EPP, and ECP modes.
The MCS9805 is ideally suited for PC applications, such as high speed parallel ports.
It is fabricated using an advanced submicron CMOS process to achieve low drain power and high-speed requirements.
Features
Single 5V operation (Standard)
Single 3.3V - 5V operation (RoHS)
Low power
PCI compatible 1284 printer port
Multi-mode compatible controller (SPP, PS2, EPP, ECP)
Fast data rates up to 1.5 Mbytes/s (parallel port)
16 byte FIFO (parallel)
Re-map function for legacy ports
Microsoft compatible
Software programmable mode selects
128-pin QFP package
Applications
Printer server
Portable backup units
Printer interface
Compatible with Windows 98SE / ME / 2000 / NT 4.0 / XP / Linux / Vista / Win 7
Merk |
NedRo |
Inhoud |

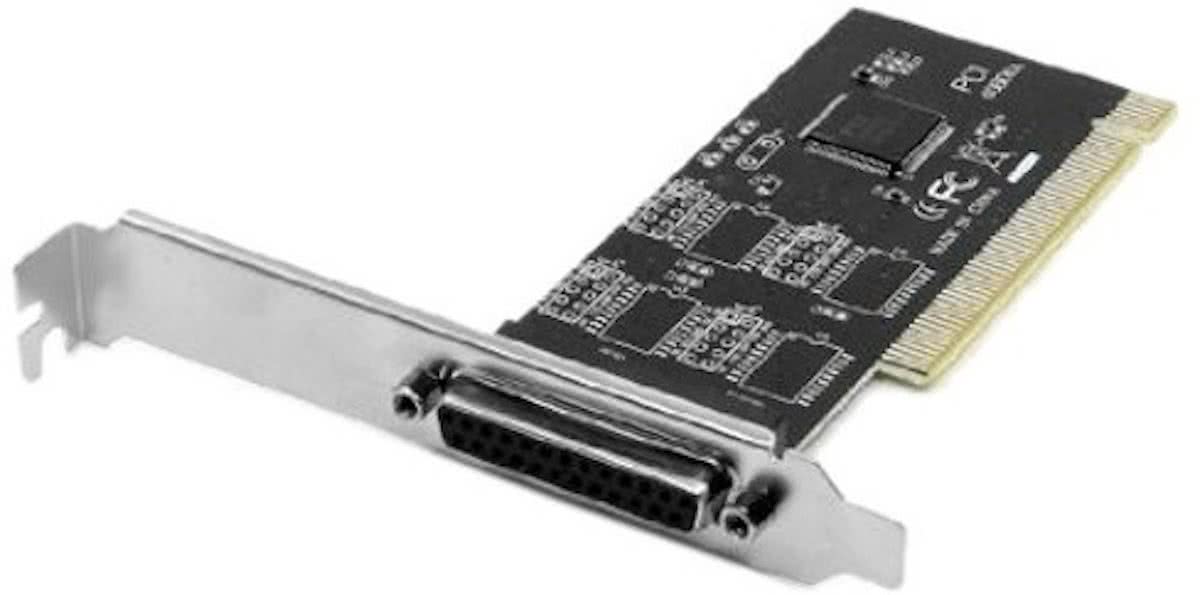

DB25 PCI IEEE 1284 Parallel Printer Port Card |
Introductie jaar |
2018 |
Leeftijd |
|
EAN |
7110214886475 |
Sku |
1215473 |
